High Performance Computing 25 SP Heterogeneous Computing

总字数:1678字,预计阅读时间 02分 47秒。

Heterogeneous Computing is on the way!

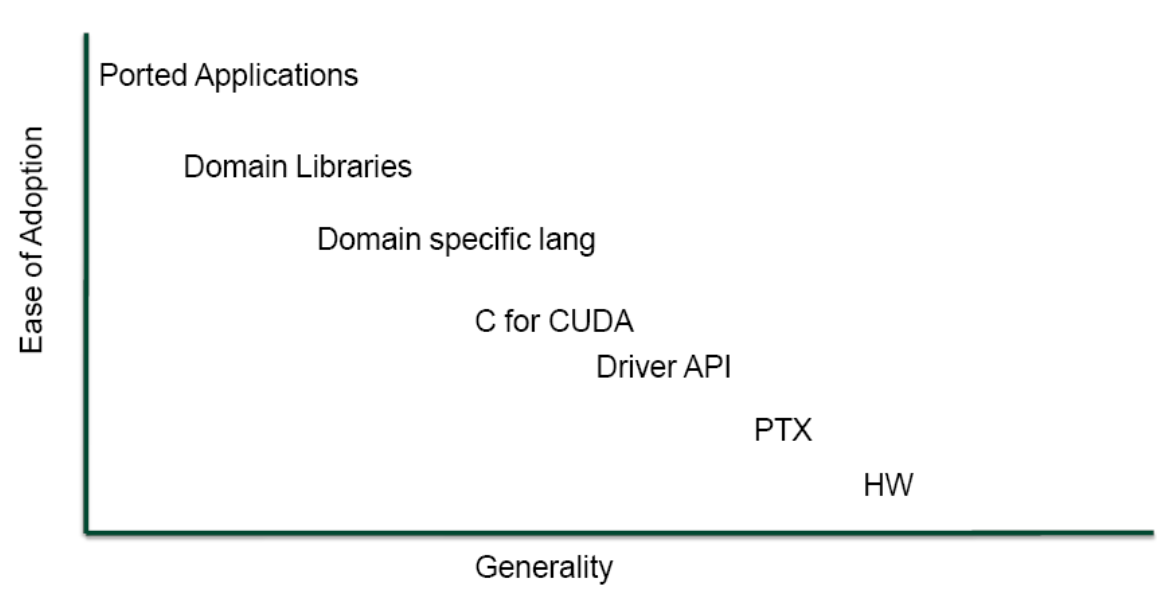

GPU Computing Ecosystem

CUDA: NVIDIA's Architecture for GPU computing.

image-20250417195644624

Internal Buses

HyperTransport:

Primarily a low latency direct chip to chip interconnect, supports mapping to board to board interconnect such as PCIe.

PCI Expression

Switched and point-to-point connection.

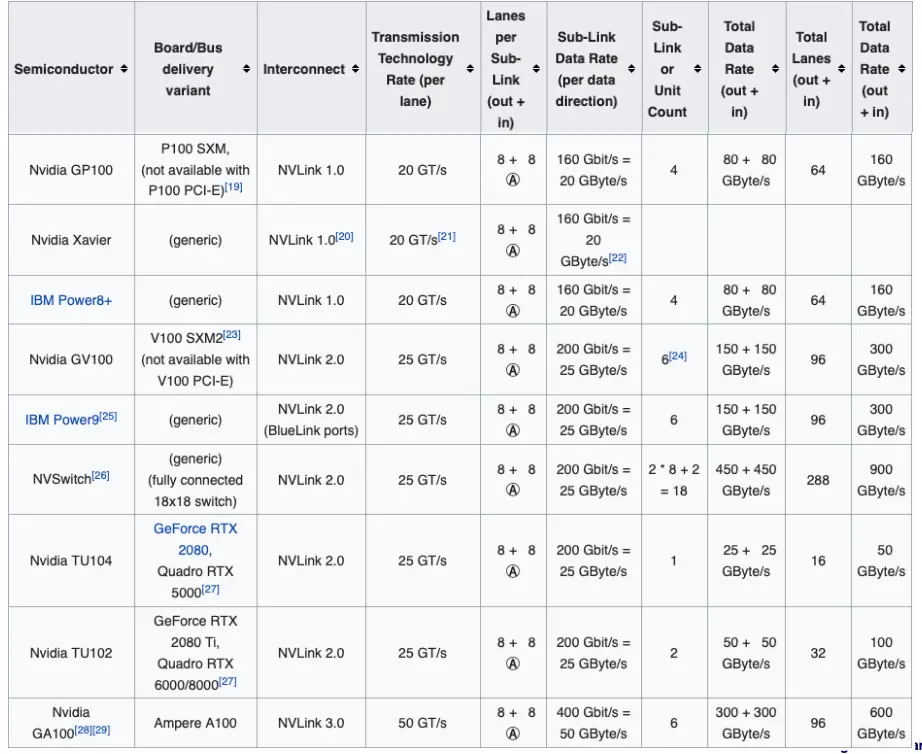

NVLink

image-20250417200241703

OpenCAPI

Heterogeneous computing was in the professional world mostly limited to HPC, in the consumer world is a "nice to have".

But OpenCAPI is absorbed by CXL.

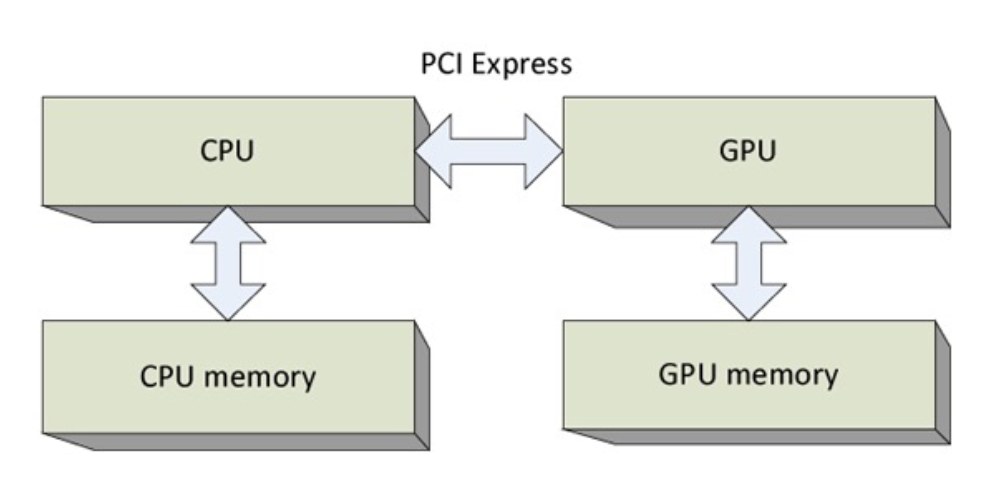

CPU-GPU Arrangement

image-20250424184701573

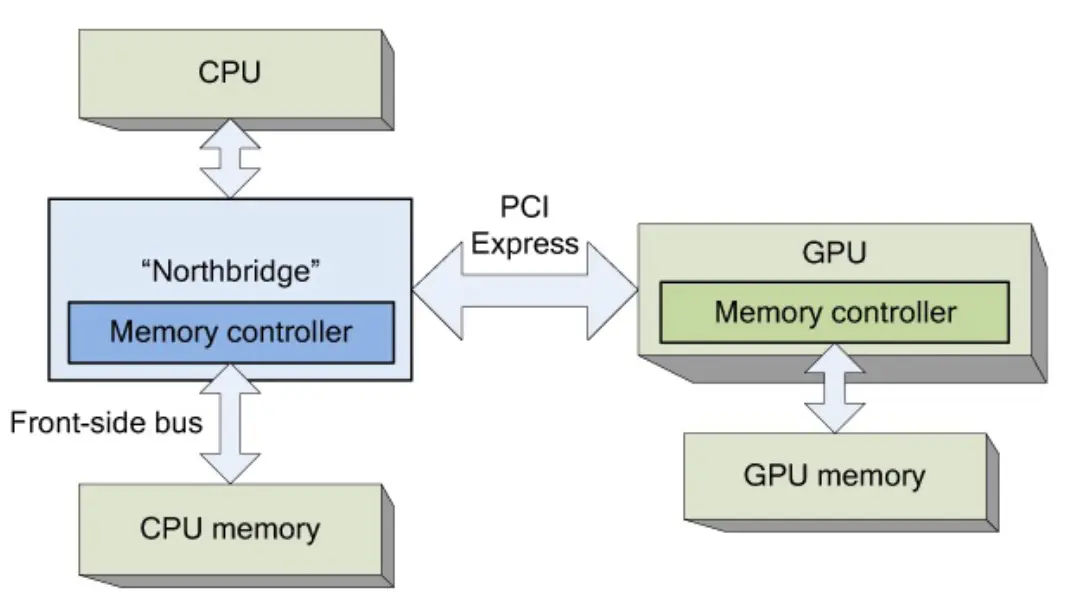

First Stage: Intel Northbrige

image-20250424185022360

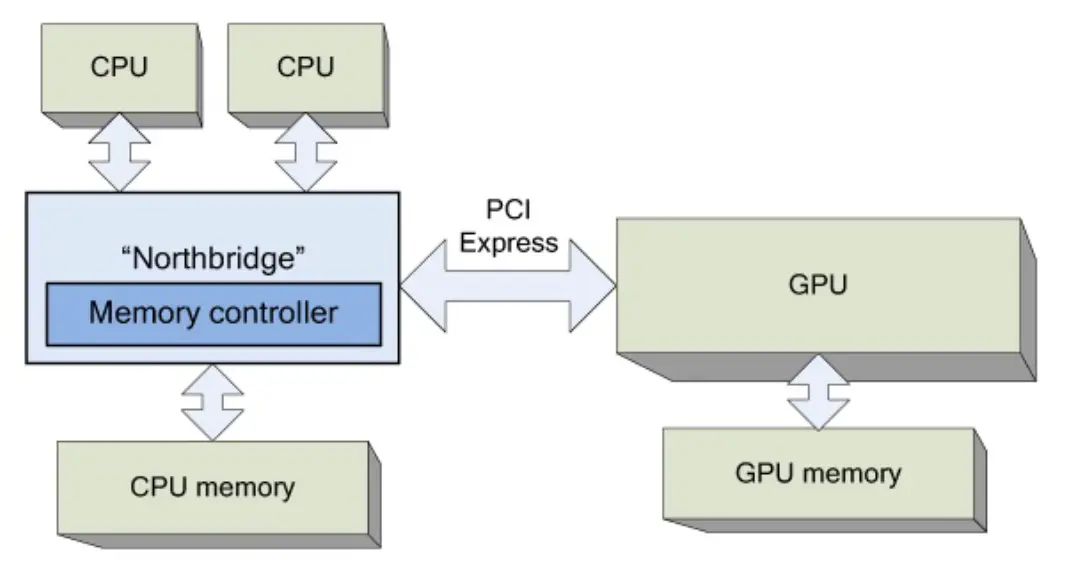

Second Stage: Symmetric Multiprocessors:

image-20250424185048036

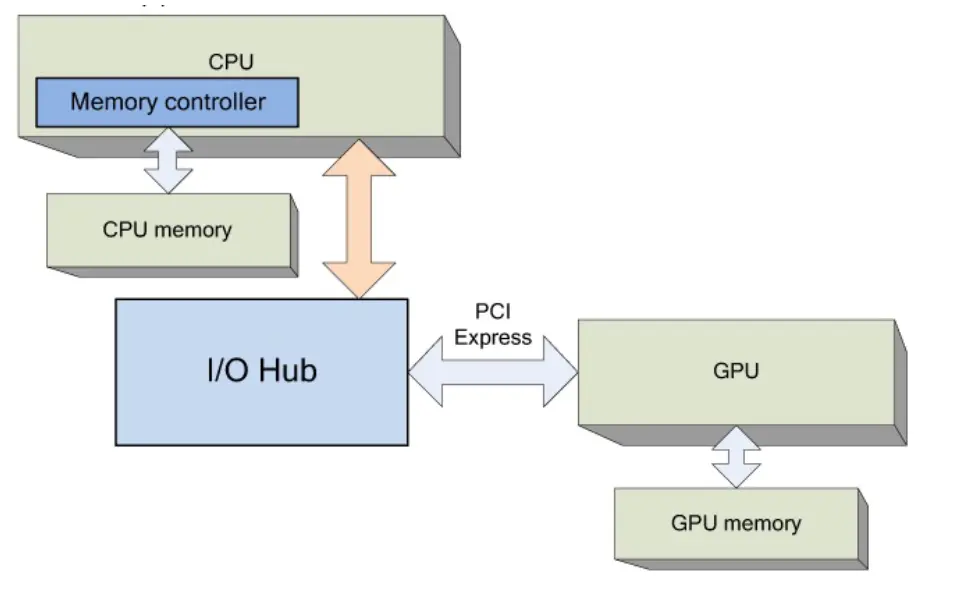

Third Stage: Nonuniform Memory Access

And the memory controller is integrated directly in the CPU.

image-20250424185152081

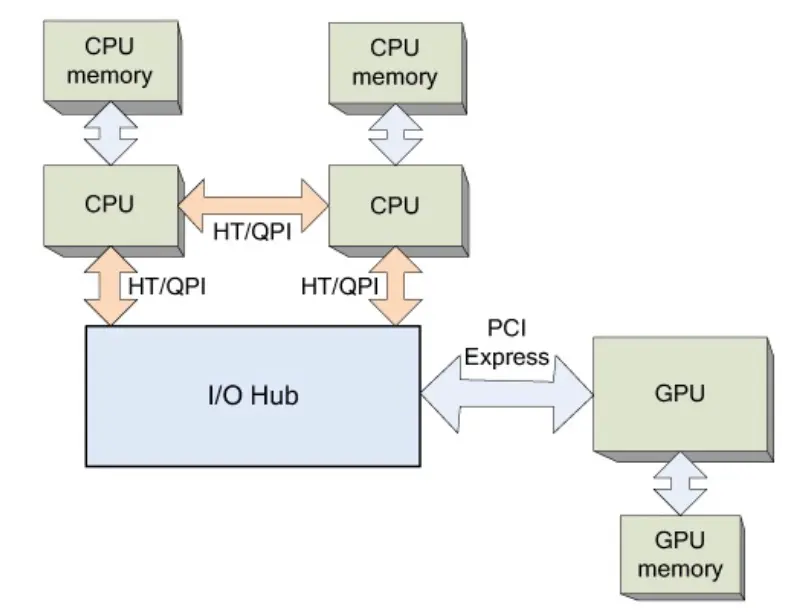

So in such context, the multiple CPUs is called NUMA:

image-20250424185219673

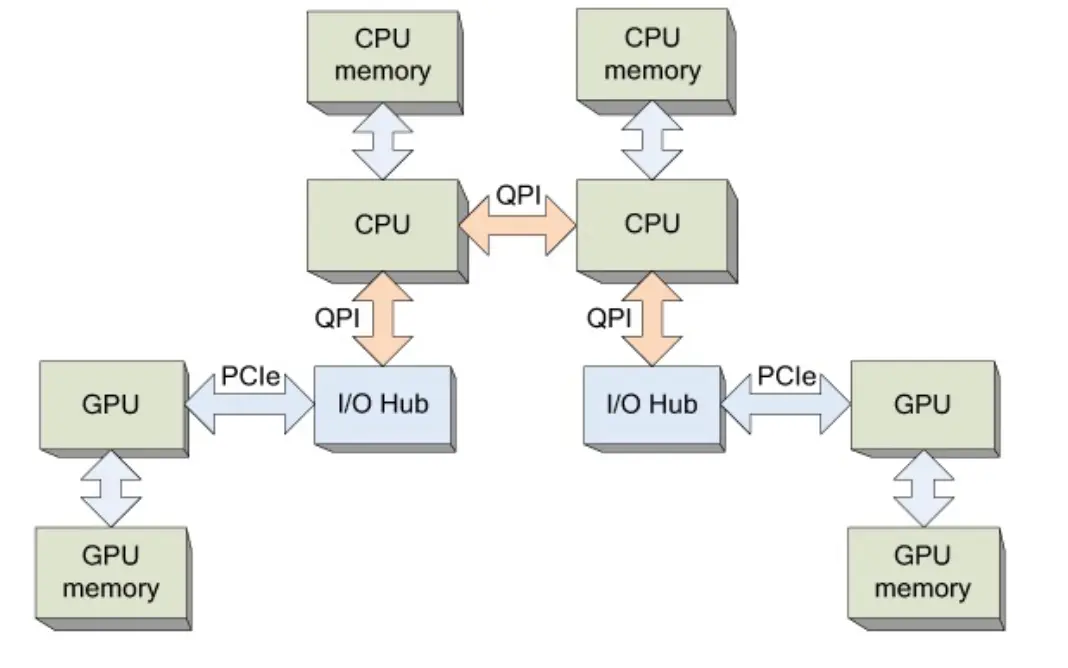

And so there can be multi GPUs:

image-20250424185322963

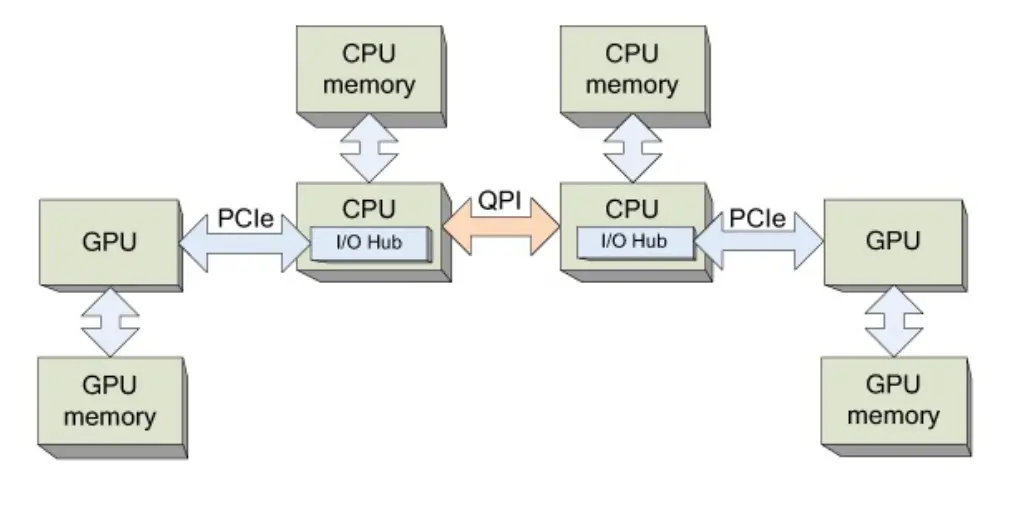

Fourth Stage: Integrated PCIe in CPU

image-20250424185354247

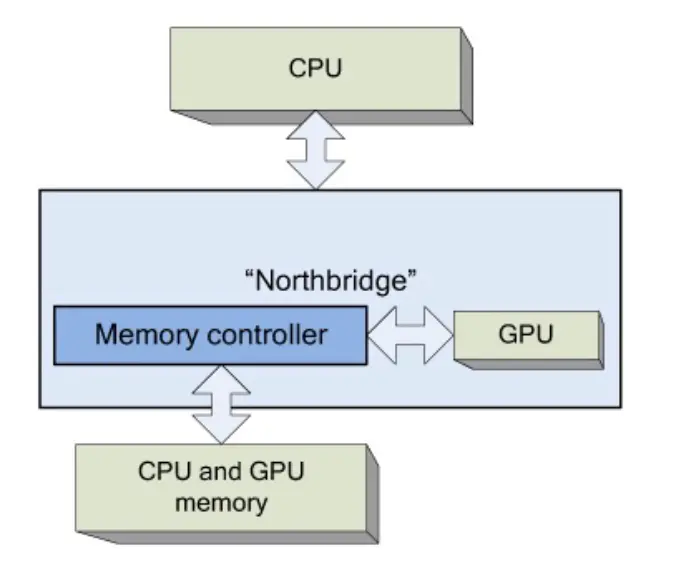

And there is such team integrated CPU, which integrated a GPU into the CPU chipset.

image-20250424185449577

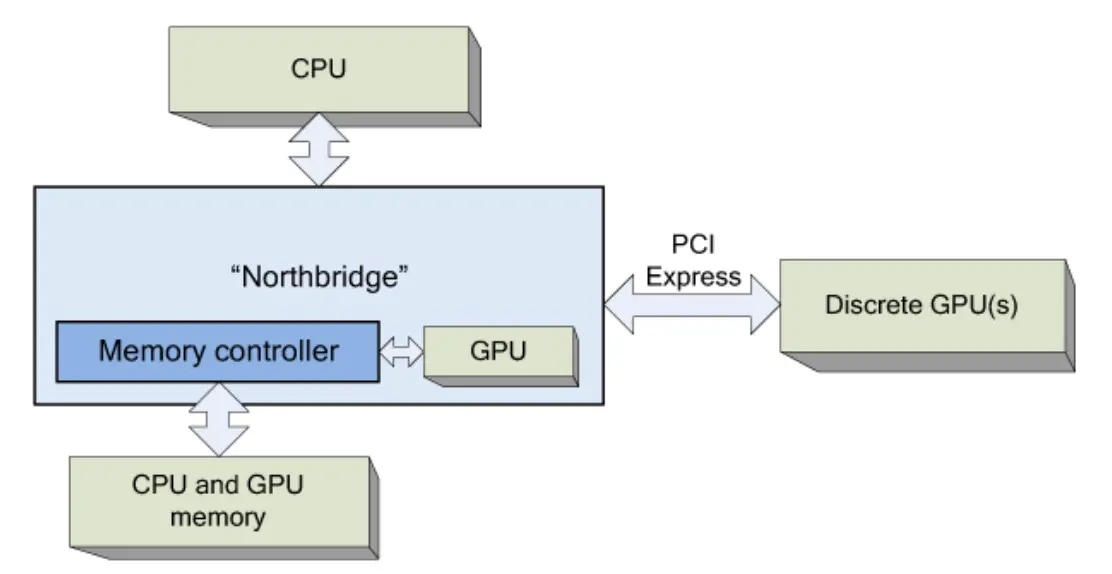

And the integrated GPU can work with discrete GPUs:

image-20250424185541483

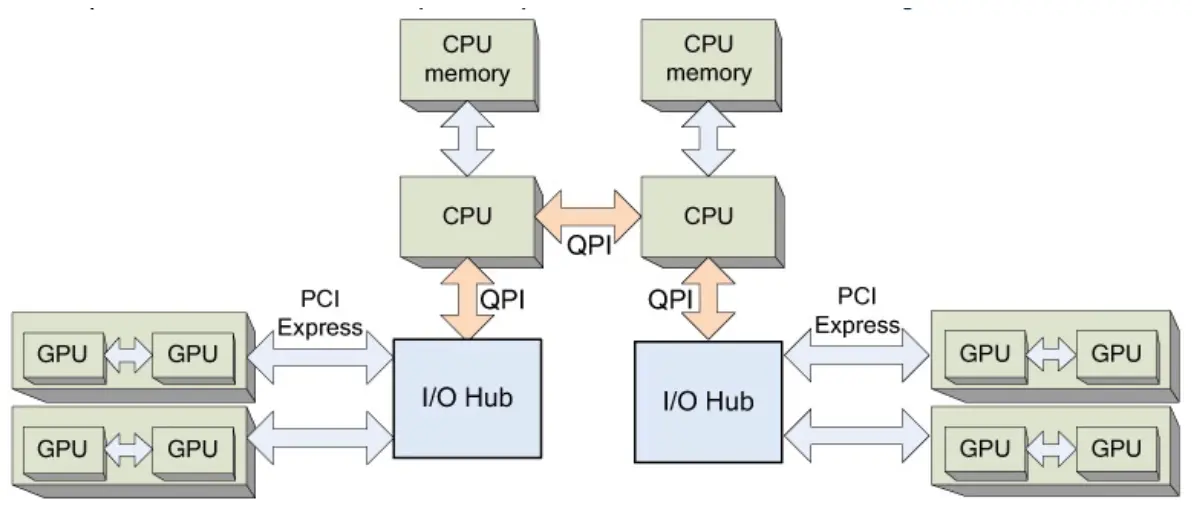

Final Stage: Multi GPU Board

image-20250424190159059
