High Performance Computing 25 SP Potpourri

Potpourri has a good taste.

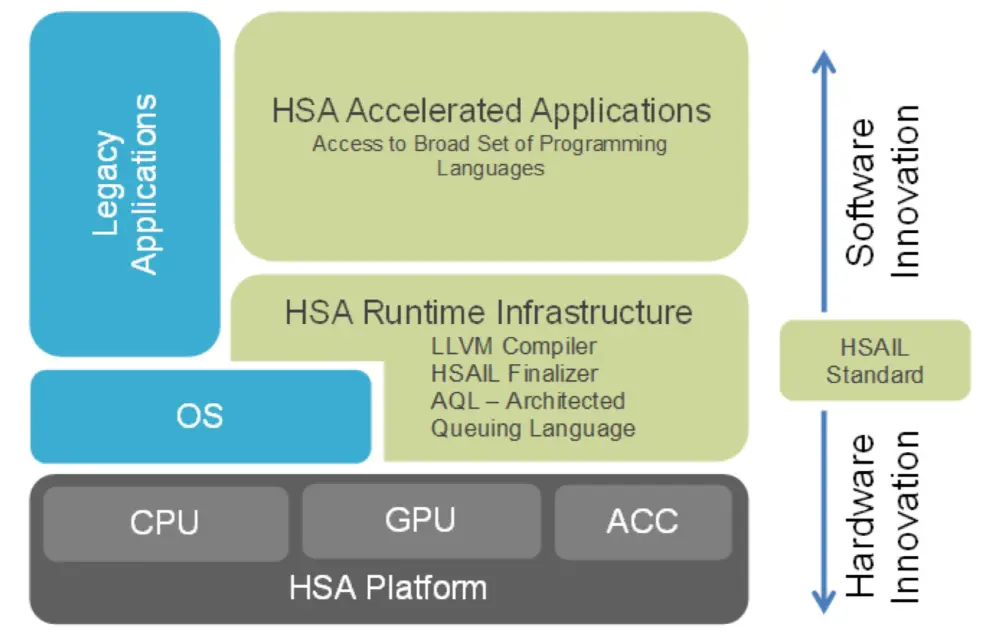

Heterogeneous System Architecture

The goals of the HSA:

• Enable power efficient performance.
• Improve programmability of heterogeneous processors.
• Increase the portability of code across processors and platforms.
• Increase the pervasiveness of heterogeneous solutions.

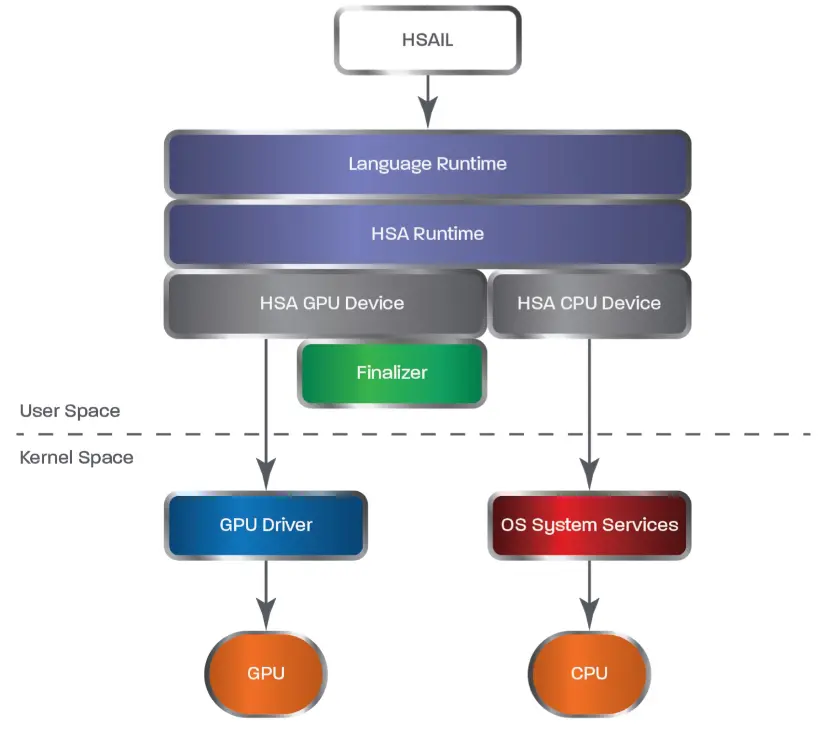

The Runtime Stack

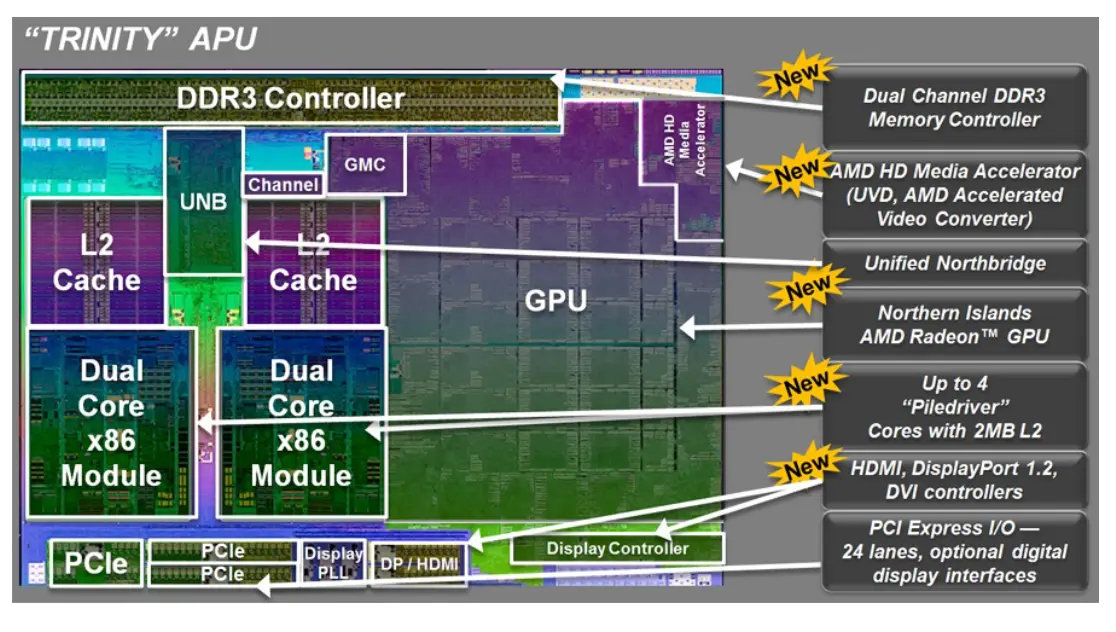

Accelerated Processing Unit

A processor that combines the CPU and the GPU elements into a single architecture.

Intel Xeon Phi

The goal:

• Leverage X86 architecture and existing X86 programming models.
• Dedicate much of the silicon to floating point ops.
• Cache coherent.
• Increase floating-point throughput.
• Strip expensive features.

The reality:

• 10s of x86-based cores.
• Very high-bandwidth local GDDR5 memory.
• The card runs a modified embedded Linux.

Deep Learning: Deep Neural Networks

The network can used as a computer.

Tensor Processing Unit

A custom ASIC for the phase of Neural Networks (AI accelerator).

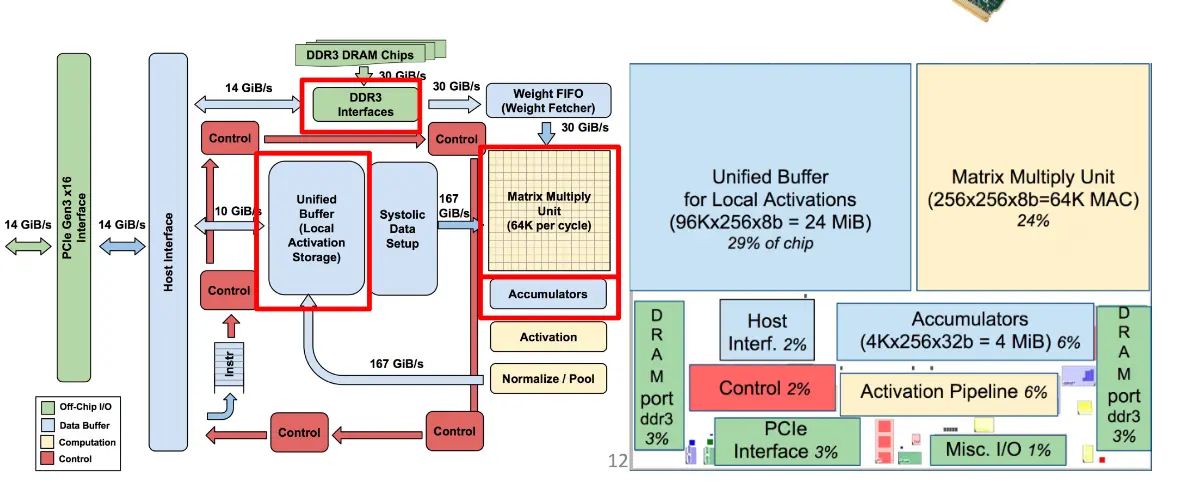

TPUv1 Architecture

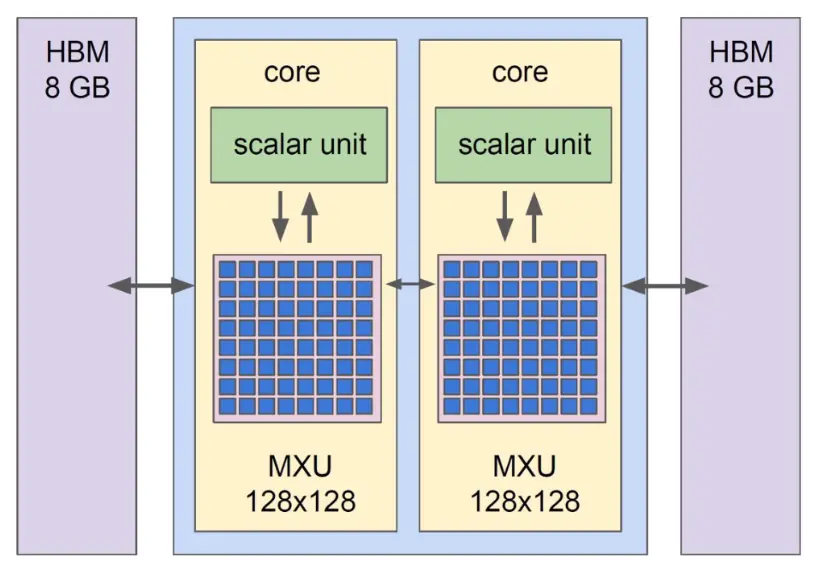

TPUv2 Architecture

Advantages of TPU:

• Allows to make predications very quickly and respond within fraction of a second.
• Accelerate performance of linear computation, key of machine learning applications.
• Minimize the time to accuracy when you train large and complex network models.

Disadvantages of TPU:

• Linear algebra that requires heavy branching or are not computed on the basis of element wise algebra.
• Non-dominated matrix multiplication is not likely to perform well on TPUs.
• Workloads that access memory using sparse technique.
• Workloads that use highly precise arithmetic operations.
